  • Introducing three of the most ambitious architectural speakers ever created; Axis, Edge & Vanquish, all part of the new Stealth Architectural Series.

The Pinnacle of Discreet High-Performance Audio

Introducing three of the most ambitious architectural speakers ever created; Axis, Edge & Vanquish, all part of the new Stealth Architectural Series. Each speaker utilizes our larger, low distortion Folded Motion™ XT tweeter, along with black-aluminum, high-excursion bass and mid-range drivers, an advanced topology crossover network with polypropylene and low-DF electrolytic capacitors, custom wound inductors, and thermal and current protection. Premium wire connections, a gloss piano-black speaker baffle that hides all mounting hardware, solid one-piece cast aluminum chassis and bezel-less magnetic grille put the Stealth Series in a class of its own.

Axis

Fits horizontally between standard 16-inches stud spacing for the perfect center channel, or left/right application.

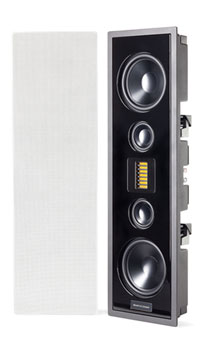

  • Edge

    High-performance and high power handling, perfect for left/right or center in-wall applications.

  • Vanquish

    Massive bass performance with an 8-inch aluminum cone woofer paired with a Folded Motion™ XT tweeter for the ultimate in-ceiling applications as left/right/center or surround channels.




  • Technical Specifications


      Edge Axis Vanquish
    Frequency Response 42–25kHz ±3dB 45–25kHz ±3dB 37–25kHz ±3dB
    Dispersion 80° x 30° 80° x 30° 80° x 30°
    Sensitivity 95 dB/2.83 volts/meter 94 dB/2.83 volts/meter 93 dB/2.83 volts/meter
    Nominal Impedance 4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. 4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. 4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.
    Recommended Amplifier Power 20-300 watts per channel 20-250 watts per channel 20-300 watts per channel
    Crossover Frequency 400, 1,800 & 3,000 Hz 700 & 2,000 Hz 400, 850 & 2,000 Hz
    Crossover Components Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors. Overall system thermal/current protection. Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors. Overall system thermal/current protection. Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors. Overall system thermal/current protection.
    High Frequency Transducer 1.25" x 2.4" (3.2cm x 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm x 7cm) diaphragm. 1.25" x 2.4" (3.2cm x 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm x 7cm) diaphragm. 1.25" x 2.4" (3.2cm x 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm x 7cm) diaphragm.
    Mid Frequency Driver Two 3.5" (8.9cm) aluminum cone with stamped steel basket. Concave dust cap. Two 3.5" (8.9cm) aluminum cone with stamped steel basket. Concave dust cap.
    Low Frequency Driver Two 6.5" (16.5cm) aluminum cone with cast aluminum basket. Concave dust cap. Two 5.25" (13.4cm) aluminum cone with cast aluminum basket. Concave dust cap. 8" (20.32cm) aluminum cone with cast aluminum basket. Concave dust cap.
    Inputs Push style binding posts. Push style binding posts. Push style binding posts.
    Weight 19lbs. (8.62kg) each 13lbs. (5.9kg) each 16lbs. (7.3kg) each
    Overall Dimensions 27.8" (70.5cm) Height
    8.3" (21cm) Width
    3.9" (9.9cm) Depth
    15.2" (38.6cm) Height
    7.8" (19.9cm) Width
    3.9" (9.9cm) Depth
    14.4" (36.5cm) Diameter
    6.3" (16cm) Depth
    Cut-Out Dimensions 27" (68.6cm) Height
    7.6" (19.2cm) Width
    14.4" (36.7cm) Height
    7.1" (18cm) Width
    13.1" (33.3cm) Diameter
    Depth Required Behind Wall Surface 3.7" (9.4cm) 3.7" (9.4cm) 6.1" (15.5cm)
    Projection From Wall Surface .2" (.6cm) .2" (.6cm) .2" (.6cm)
